Universal EFI Line clamp Install Kit, U-Drill (5/32"-5/8") Line clamps

Universal EFI Line clamp install kit includes all clamps we use when converting a car from carburetor to Electronic fuel injection. This includes clamps for routing both, fuel and return lines up to 5/8" O.D. Our Medium vice drill jig is included to allow you to drill the line clamps out to any diameter and any combination for your specific project

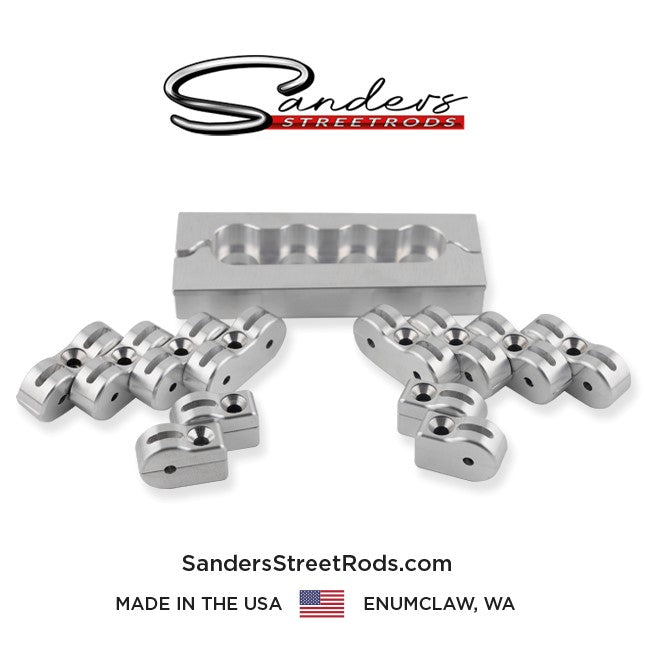

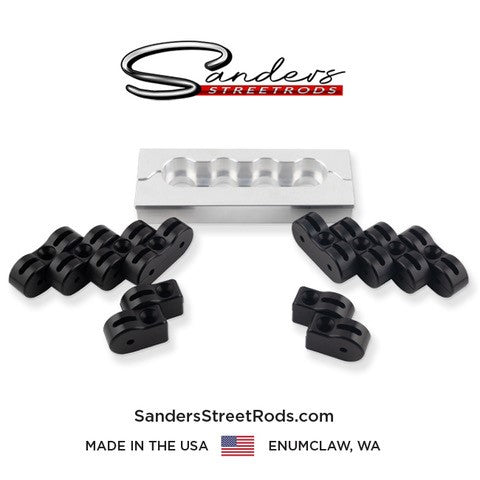

Kit Includes:

• 2 Packs (8 line clamps) - U-Drill Medium Double Line Clamp
• 1 Pack (4 line clamps) -  U-Drill Medium Single Line Clamp

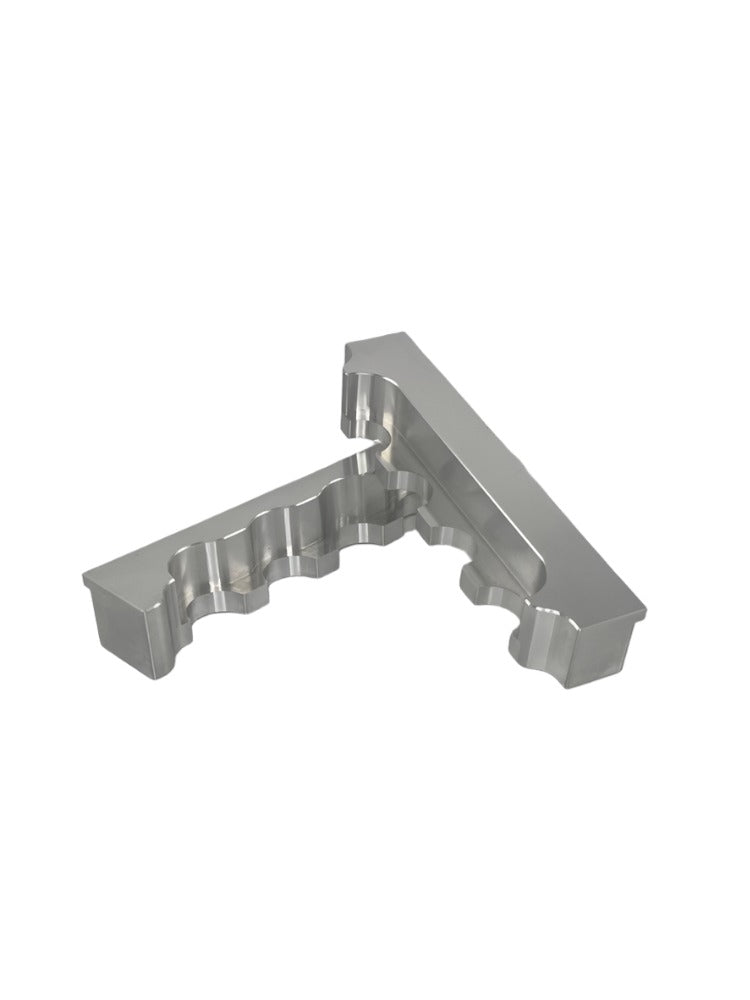

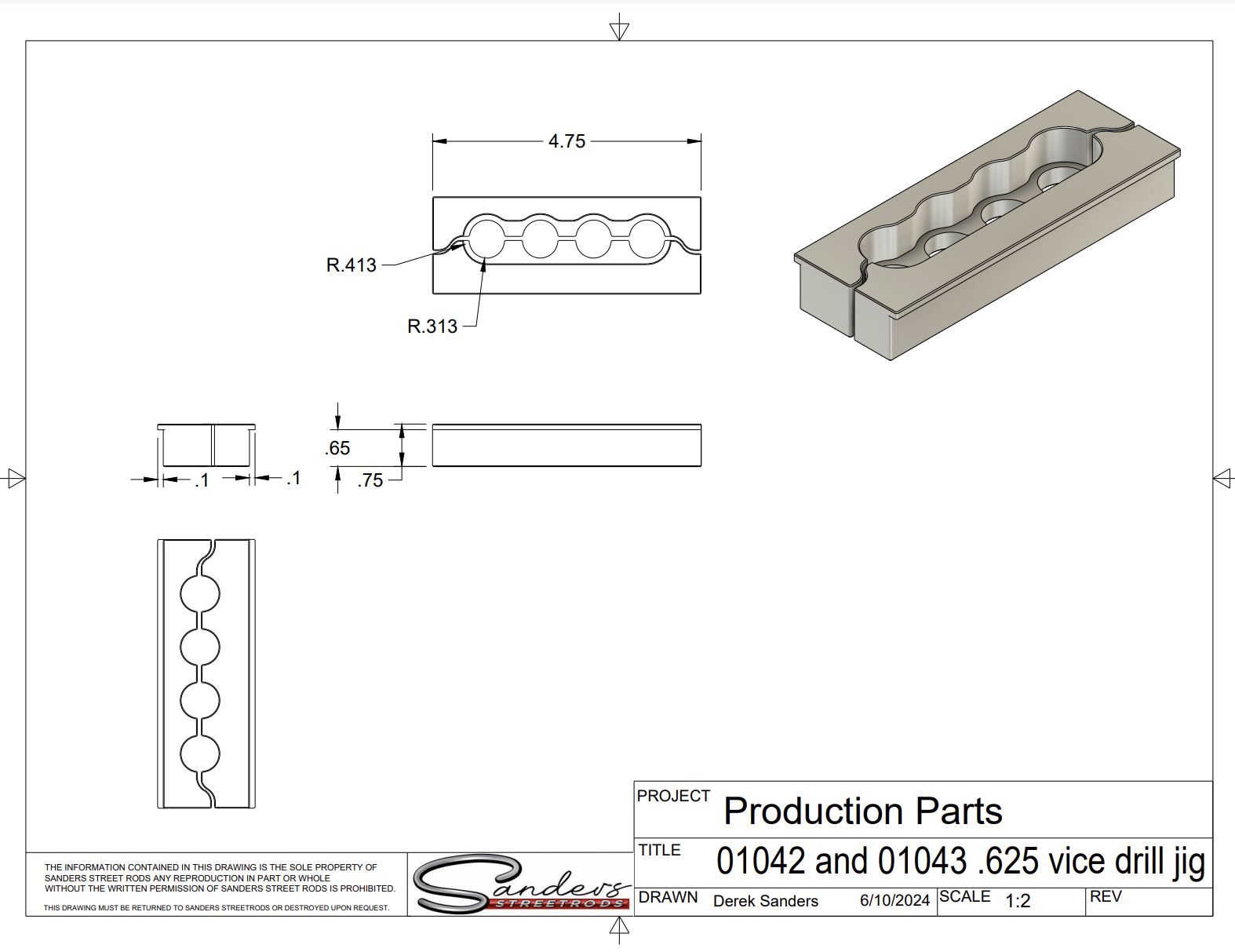

• 1 Set -  Vise drill Insert Medium

Download Line Clamp Vice Drill Instruction (pdf)

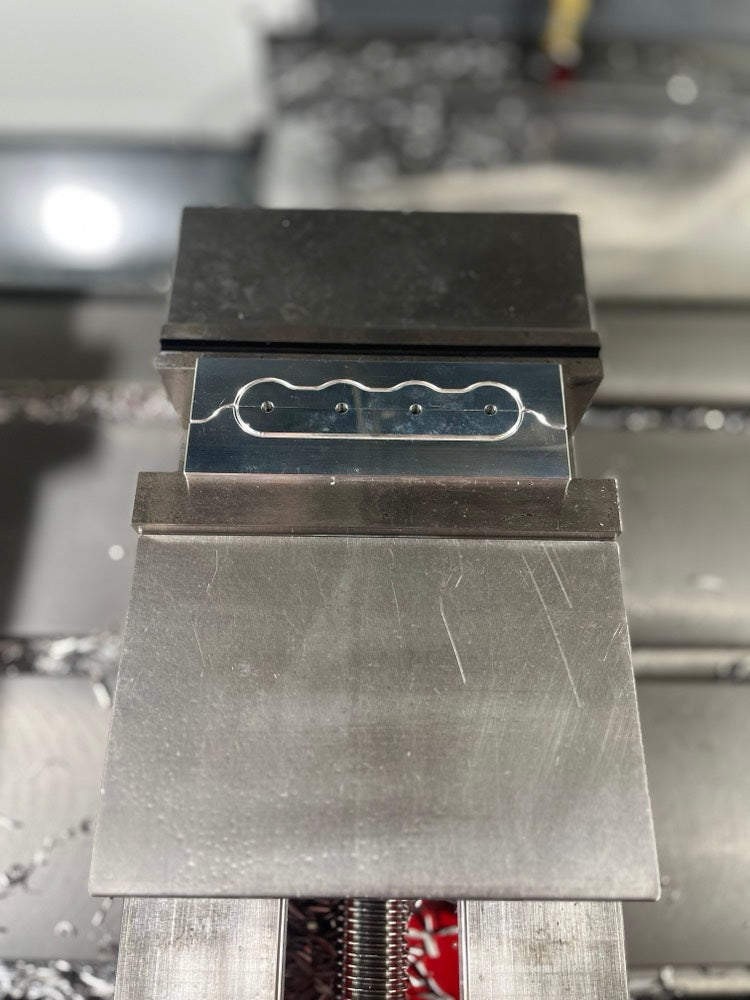

Medium Billet 6061 Line clamps (patent pending) are ideal for mounting medium hose, tube, cables, loomed wire and more. Our unique design and drill jig allow for each clamp to have hole sizes ranging from 5/32" to 5/8".

This makes mounting multiple different diameter components achievable in one clean clamp. We drill an 5/32" pilot hole to start, then you drill the hole to the correct diameter for your application. We offer 1,2,3, and 4 hole clamps in this diameter. No more worrying about having the correct diameter clamp or ending up with a bunch of mismatched clamps holding your lines in place.

This is a solution to a problem we have run into in my hot rod shop for years and now we are offering it to you! Also check out our Small and large line clamps for mounting everything from brake lines to heater hose. Stainless 10-32 bolt and nylock included.

Not ready to invest in a drill jig? Send us an email to Josh@sandersstreetrods.com for pre-drilled line clamp options.

------

We have found that these step reamers are the best way to drill the medium and large line clamps to the desired hole size. Each step is 1/2" tall and will reach all the way through the clamp and can debur one side while drilling.

Download Line Clamp Vice Drill Instruction (pdf)

Download Line Clamp Brochure (pdf)
